DHCP

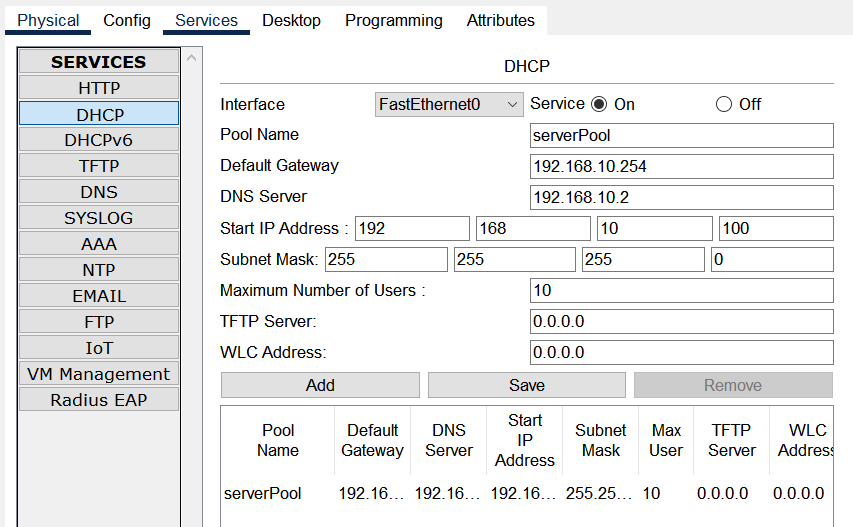

서버를 DHCP 서버로 설정
Server0 설정(DHCP+DNS)

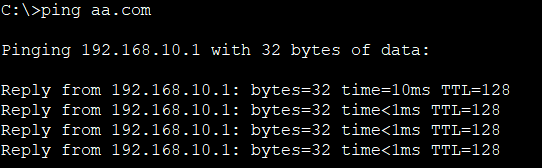

PC3

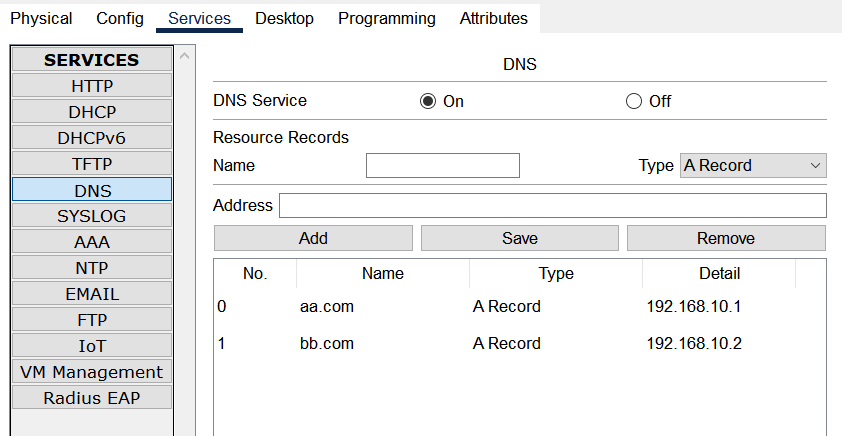

서버를 DNS 서버로 설정
라우터를 DHCP 서버로 설정
R4
Router>en
Router#conf t
Router(config)#ip dhcp pool DHCP
Router(dhcp-config)#network 192.168.20.0 255.255.255.0
Router(dhcp-config)#default-router 192.168.20.254
Router(dhcp-config)#dns-server 192.168.10.2
Router(dhcp-config)#exit
Router(config)#int f0/1
Router(config-if)#ip addr 192.168.20.254 255.255.255.0
Router(config-if)#no sh
Router(config)#int f0/0
Router(config-if)#ip addr 10.0.0.2 255.255.255.0
Router(config-if)#no sh
Router(config)#ip route 192.168.10.0 255.255.255.0 10.0.0.1
R3
Router>en
Router#conf t
Router(config)#int f0/1
Router(config-if)#ip addr 192.168.10.254 255.255.255.0
Router(config-if)#no sh
Router(config)#int f0/0
Router(config-if)#ip addr 10.0.0.1 255.255.255.0
Router(config-if)#no sh
Router(config)#ip route 192.168.20.0 255.255.255.0 10.0.0.2

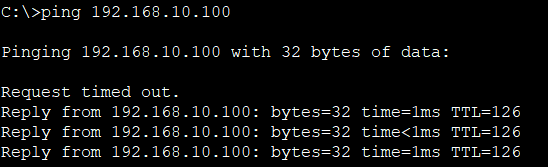

PC4
